Systema bikes & frames

On this page: Systema 55cm frameset

We don't have an on-line shopping cart. If you see something that interests you or if you have a question, please call us at (503) 480-2001.

---

Systema 55cm framesert with 105 headset. Used, but recently refinished, $250.00/frameset as pictured

• Tange Infinity steel lugged frame – recent paint job.
• 1” steel steerer tube.
• Seat Tube 55cm, center-to-center
• Seat tube 26.4mm
• Top tube 55cm
• Head tube 133mm
• Chainstay 42cm
• Wheelbase 100cm
• Bottom Bracket Drop 6.5cm
• Frameset 7.2 lbs
• Rear dropouts have eyelets, 126mm
• 105 headset
• Serial # FE2812
• SL# 94099

Photos:

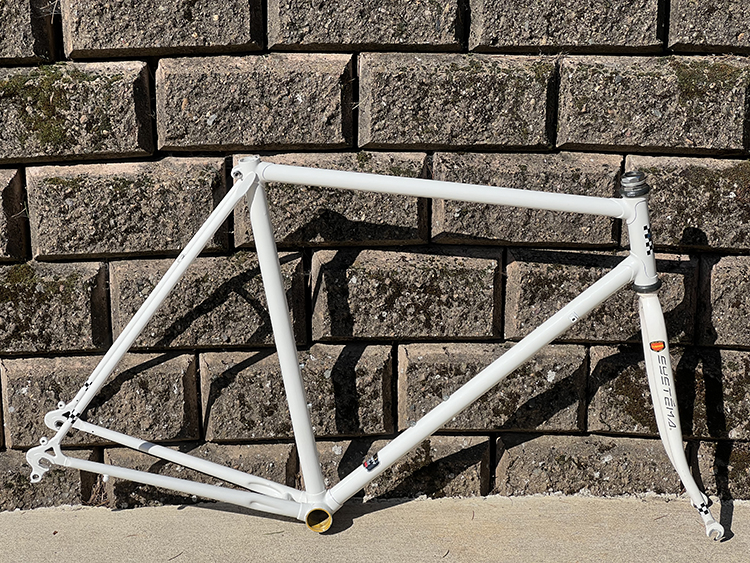

Side view of the frameset

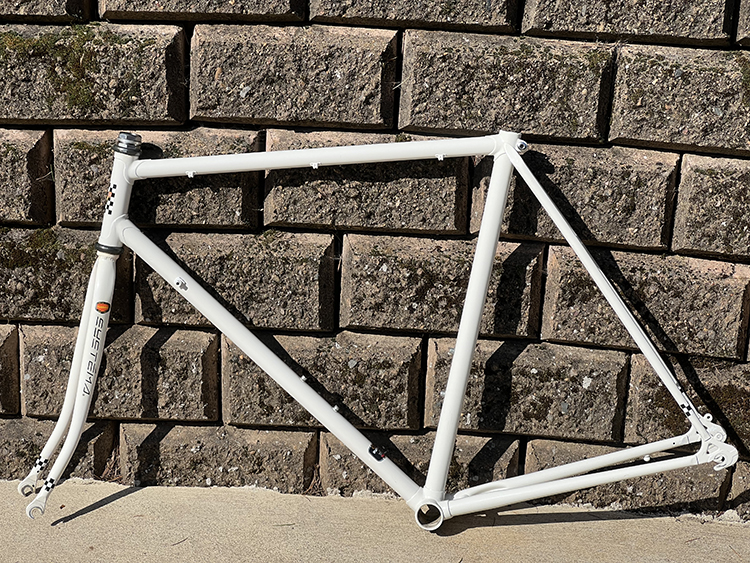

Here's the non-drive side of the frameset.

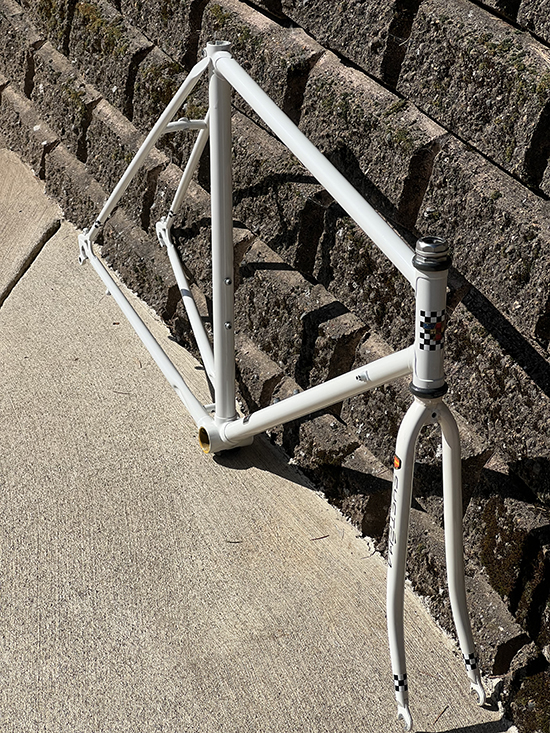

Front view

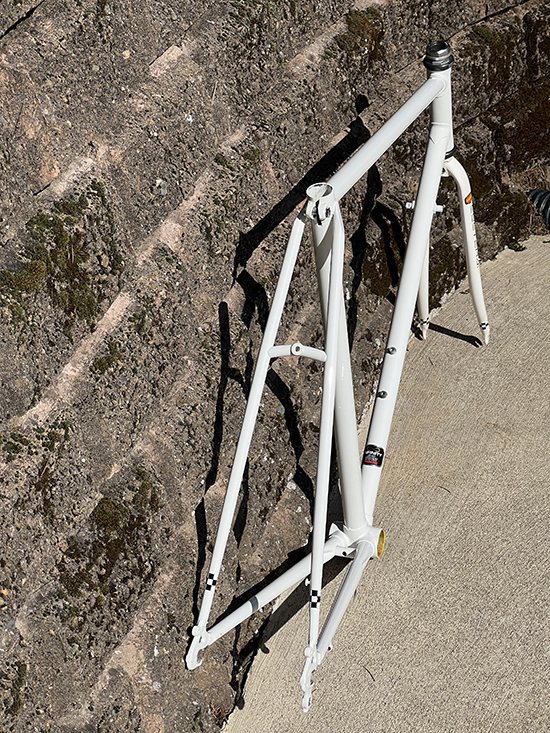

From behind

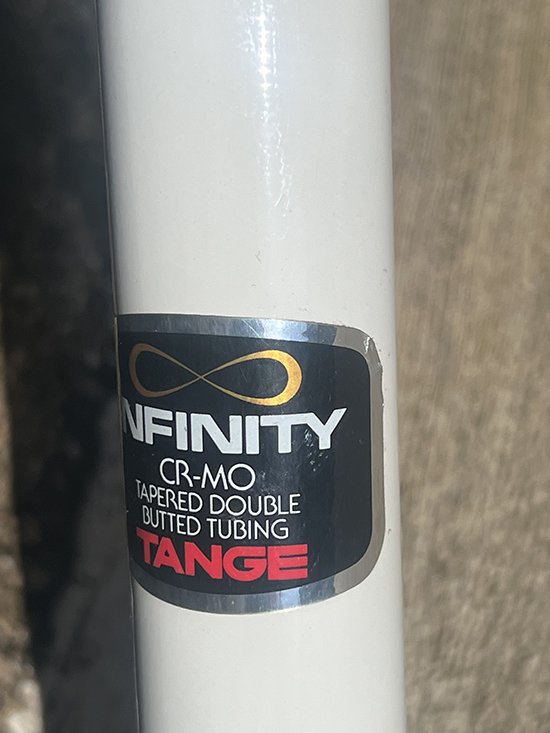

The frame's Tange Infinity tubing decal.

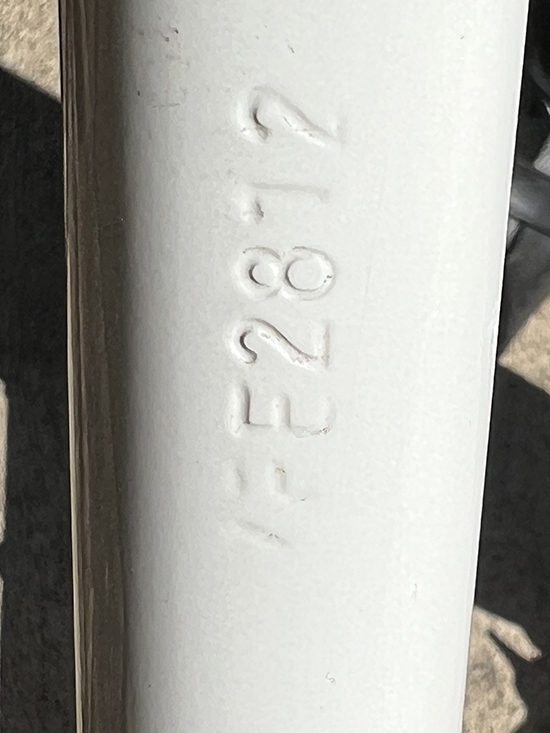

Serial number stamped on the downtube.

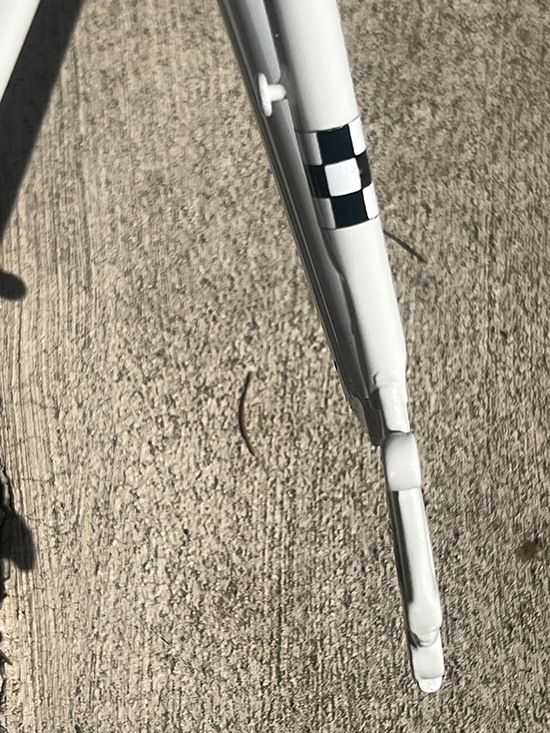

Side view of one of the fork blades

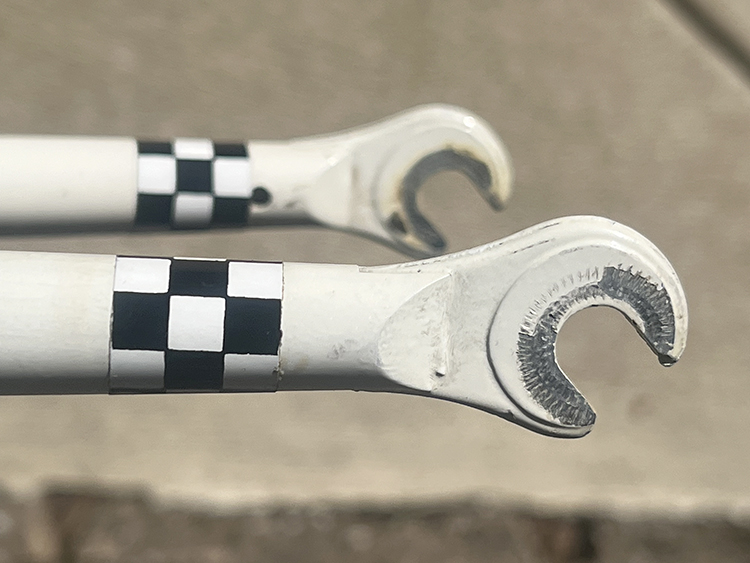

The forged front fork tips.

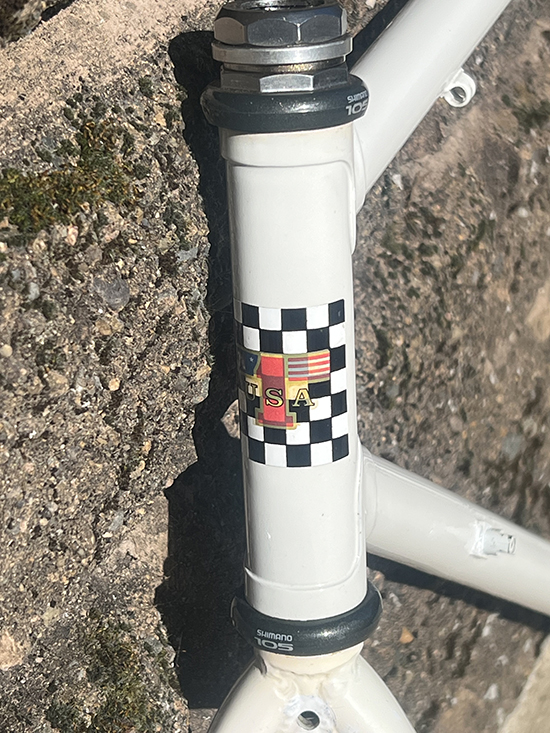

The head tube, showing the 105 headset.

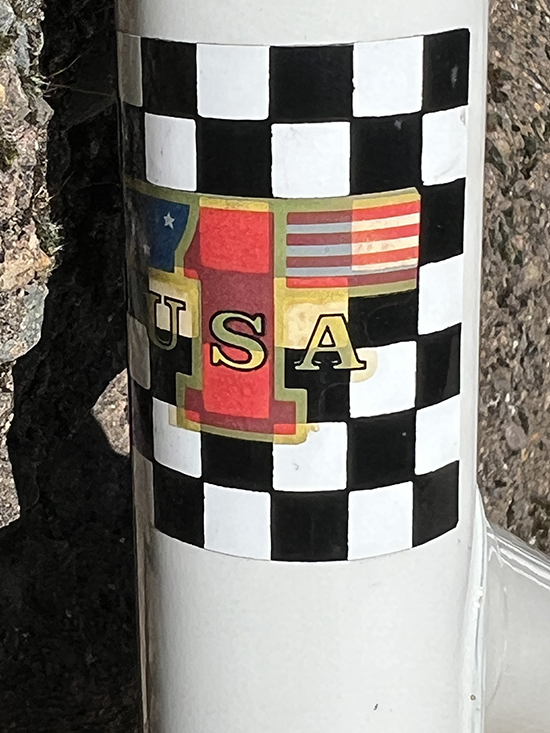

Close-up of the frame's head badge.

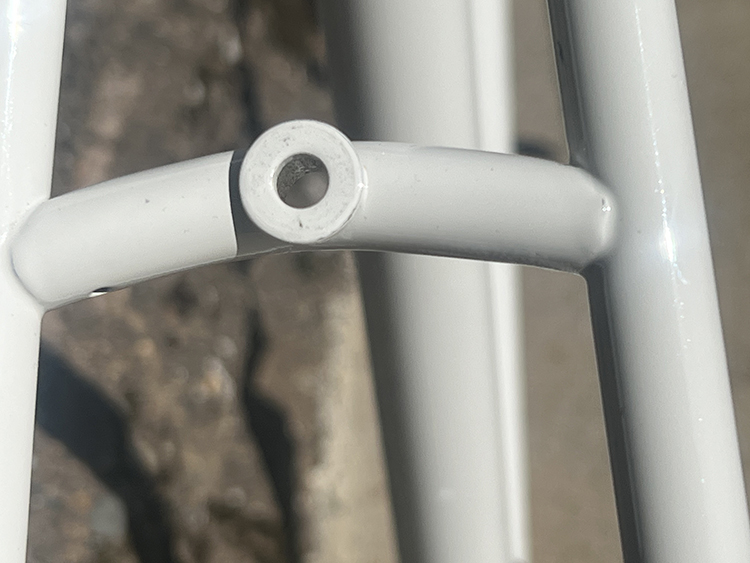

The rear brake bridge

Chain hanger on the right seat stay.

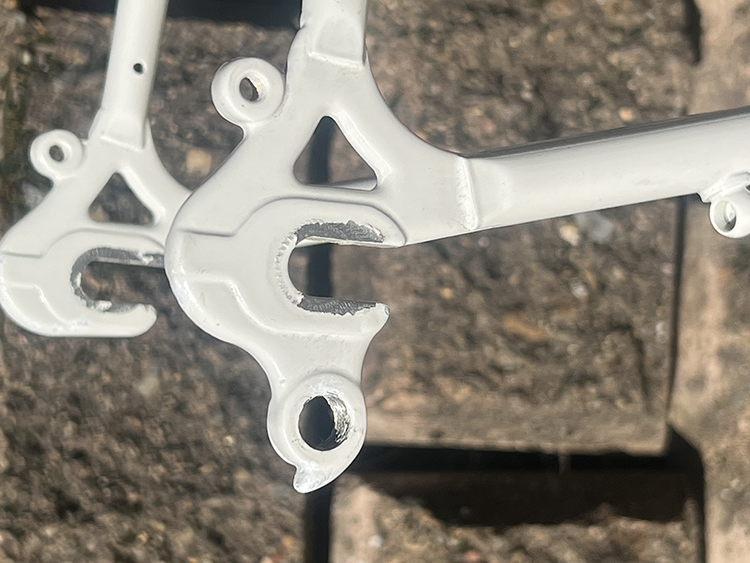

The frameset's forged rear dropouts with eyelets.

The Abby Road cover photo the way it should have been done.
