Trek Bicycles

Trek bicycles on this page:
Road: 48cm 500 bicycle | 50cm 420 frameset | 54cm 2120 carbon bike | 58cm 520 Touring bicycle | 58cm 1100 frameset | 59cm 531 frameset
ATB: 18" Y-5 | 18" 7000 | 18.5" 7000

Trek memorabilia: Lance Armstrong, Trek's most famous rider

Trek is an American bicycle company started in 1975. From its humble beginning with five employees and total production of 900 frames that first year, Trek has grown to a world-wide giant with sales that approach a billion dollars.

---

48cm Trek 500 grey bicycle. Used, $500.00/each

Serial # 163958

Weight: 23.5lbs. This bicycle has been completely overhauled.

If desired, changing shifters to 7/8-speed with corresponding freewheel/cassette would be compatible with the derailleurs/crankset currently on this bike.

The frame:

• Reynolds 501 Tubeset, forged dropouts
• 53cm Top Tube
• wheelbase 1000mm
• Chainstay 420mm
• Head Tube 75mm
• BB Drop 70mm
• Dropout Spacing 130mm

The Build kit:

• Shimano Deore XT 730 GS rear derailleur
• Shimano Deore XT 730 triple front derailleur
• 105 1050 6s downtube shifters
• “Bianchi” Col CFM 165mm 30/42/52 ramped/pinned crankset
• Shimano UN55 68mm x122.5mm bottom bracket
• Shimano 600 6207 Brakeset, 47-57mm reach
• Wheels: Shimano 600 6207 36-hole hubs, DT 14/15 stainless steel spokes, Wolber T430 Alpine rims
• Shimano 600 6208 6-speed freewheel with 13, 15, 17, 19, 21, 24 cog progression.
• Continental Gatorskins 700c x 23mm tires
• Jagwire housing/Stainless Steel Slick cables
• Connex 808 chain
• SR 6cm stem
• 25.4mm x 42cm outside-to-outside randonneur handlebar
• Sugino SP KC 27.2mm seatpost
• Vetta gel saddle
• SR SP-150 pedals with Cateye small road toeclips and Christophe red woven straps

Side view of the bike

From the front.

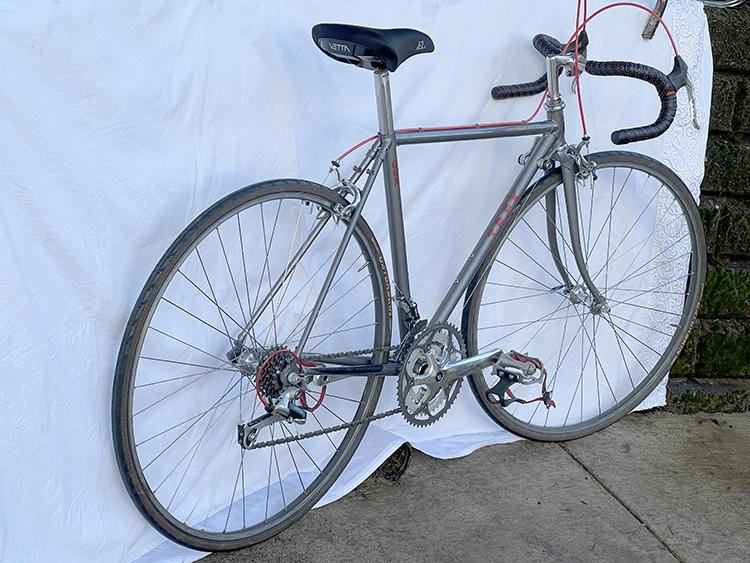

And here's looking at the bike from behind.

Closer view of the cockpit.

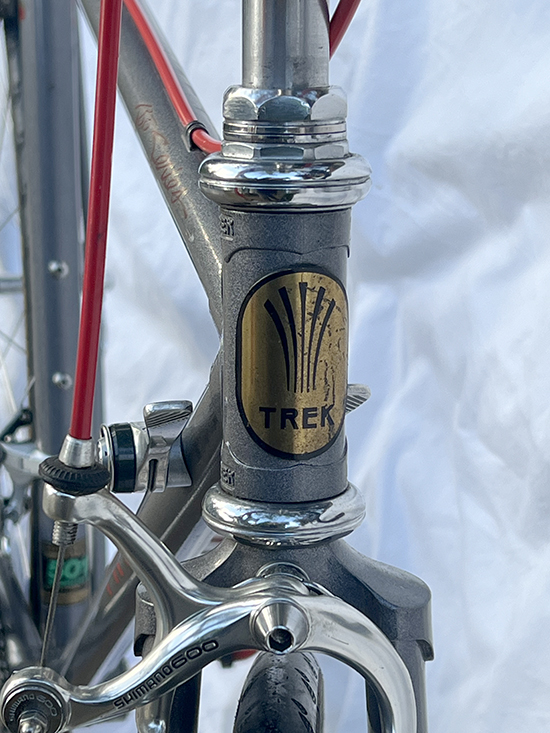

Close-up of the head badge

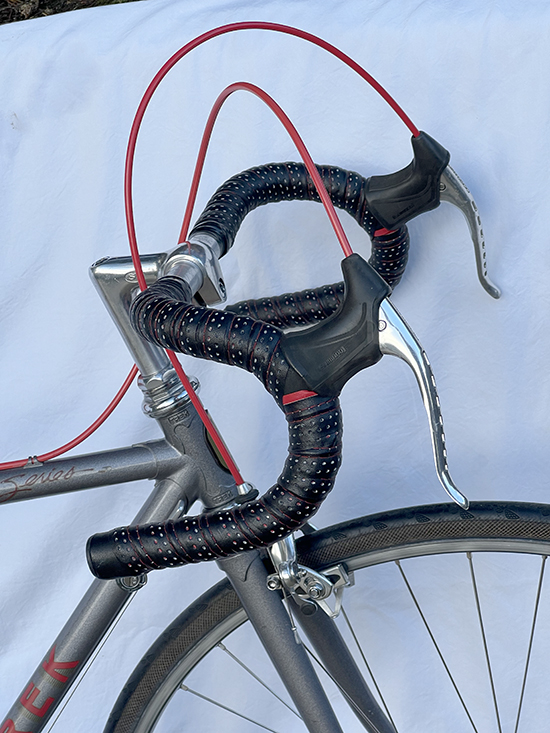

Side view of the bars.

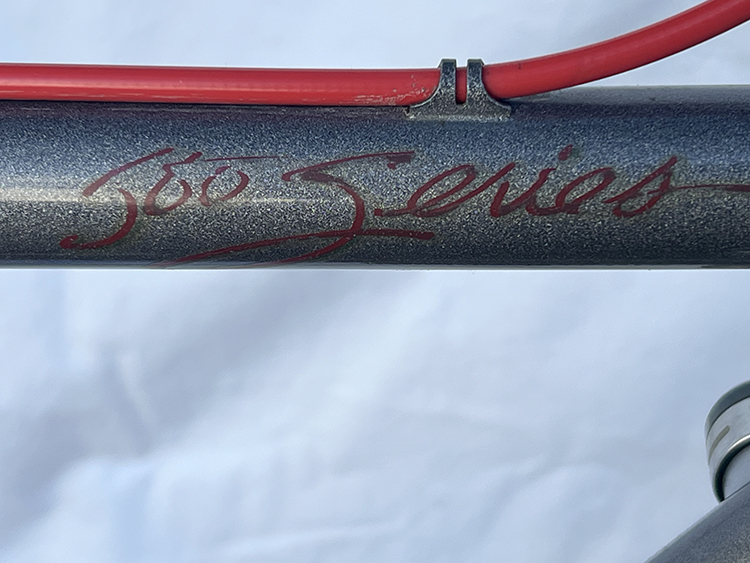

Front of the top tube.

Close-up of the Shimano 105 downtube shift levers

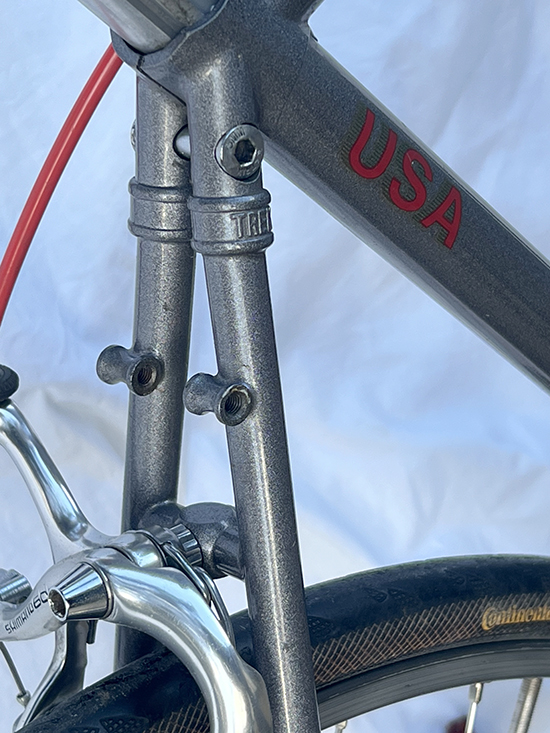

The seat tube/seat stay cluster

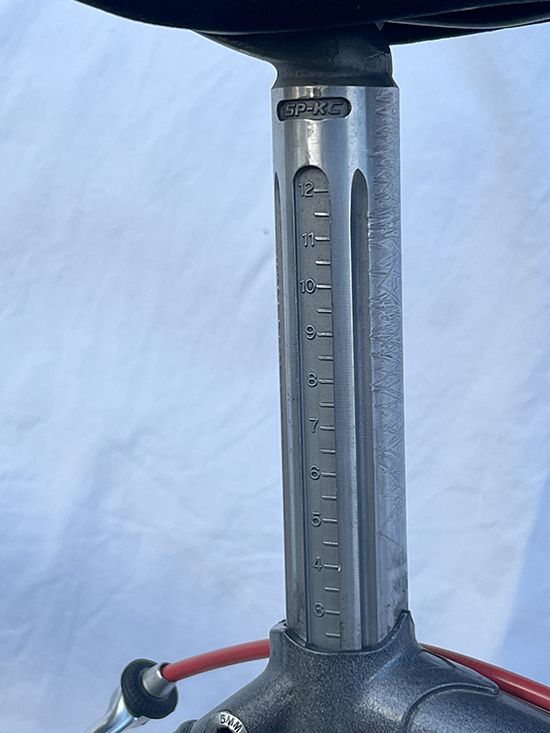

While we're at the seat stay cluster here's the Sugino seat post.

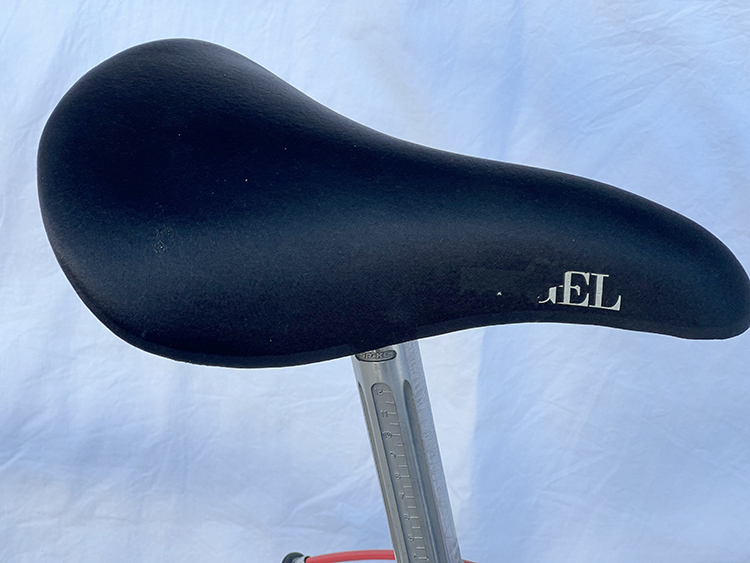

And perched atop that SR seatpost is a Vetta Gel saddle.

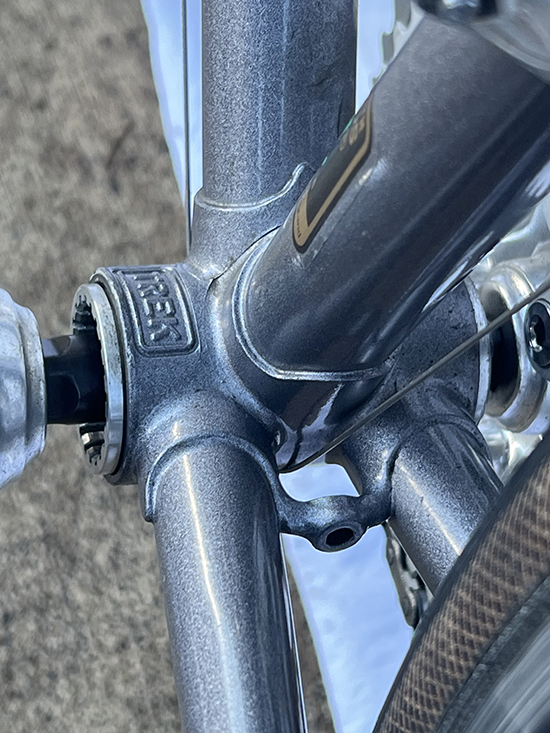

The investment-cast bottom bracket shell.

The underside of the bottom bracket shell, showing that the bike is made in the USA.

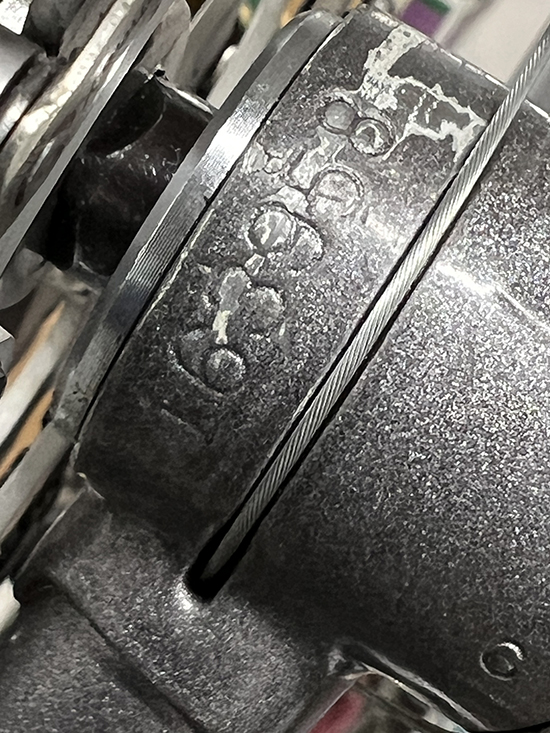

And on the other side of the shell is the serial number: #163958

The bike's triple crankset.

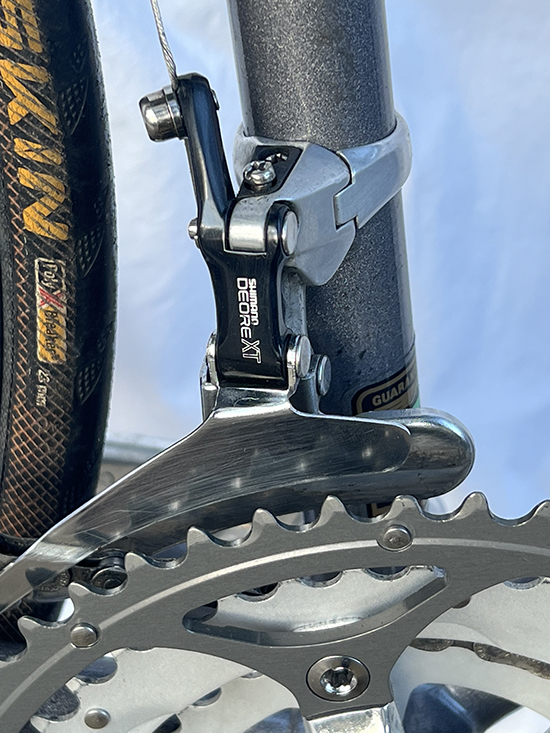

Here's the front Shimano Deore XT derailleur.

The rear Shimano Deore XT derailleur

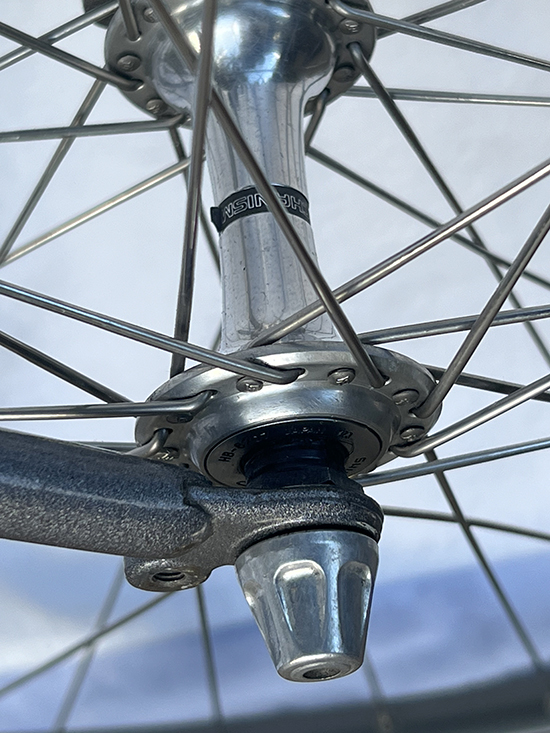

The front Shimano 600 hub...

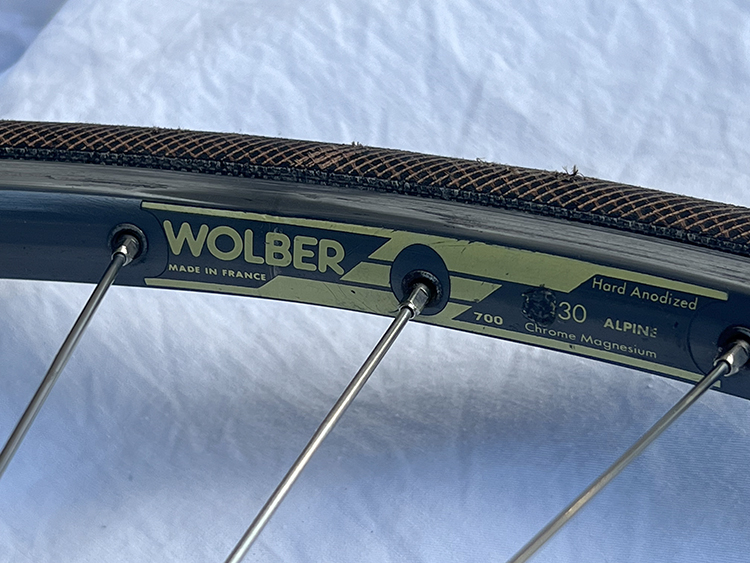

Laced up to a Wolber T430 Alpine rim.

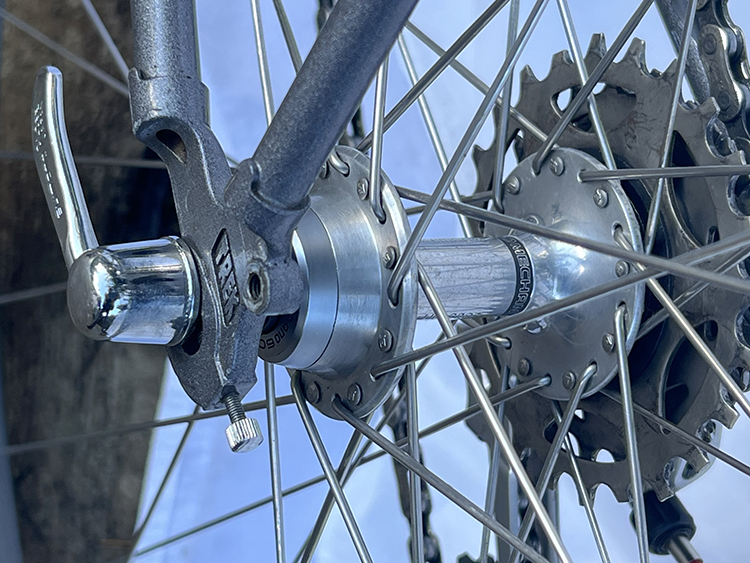

The rear Shimano 600 hub.

---

50 cm Trek 420 steel frameset. Used $400.00/each
50cm seat tube x 54cm top tube

• 105mm head tube
• We date this frameset to 1985-1986
• Made with True-Temper tubing
• The rear derailleur cable was routed through the chainstay. This could be done because of the special investment-cast dropouts.

The investment-cast seat lug has "Trek" cast into the sides of the lug. The fork crown is also an investment casting.

---

54cm Trek 2120 carbon bike. Used $800.00
54cm seat tube x 54cm top tube

The main triangle is carbon fiber which is bonded to an aluminum alloy rear triangle. The forks are also aluminum, all making for a reasonably-priced road bike.

Our bike is built with a Shimano RSX 21-speed kit with and LX front derailleur. The wheels are Mavic CXP rims laced to RSX hubs.

Three main tubes carbon fiber

Close-up on the main triangle, showing bosses for two water bottles.

Rear view

From the front

This bike was built in in the U.S. the late 1990s or early 2000s

---

58cm Trek 520 Touring complete bicycle. $1,000.00, used
58 cm seat tube x 58cm top tube.

Before moving on to the bike's component specs, here's what bicycletouringpro.com had to say about the Trek 520 Touring:

"The Trek 520 caters to the touring bike scene with its chromoly steel frame that offers the perfect mix of flexibility, comfort and durability needed for long-distance bicycle touring. The stretched out geometry is just right for staying comfortable on the bike and at the same time allows you to get in a good aerodynamic stance for optimal speed. The 520 is perfect for long-distance bicycle tours or for the daily commute. Its classic touring geometry has stood the test of time and is considered a cult classic by many."

Our frameset is built with True Temper OX. The component kit is based on the Shimano Deore 21-speed group. It has RX100 aero brake levers and fingertip shifters. There are braze-ons for three bottle cages. It comes with alloy pedals with toe clips and straps. If you want clipless pedals, let us know. We have 'em.

The wheels are Matrix Journey heat-treated 36-hole rims mounted with Panaracer Pasela Tour Guard Kevlar 700 x 32 tires.

The saddle is a Terry Liberator.

Side view showing the wide-range gearing

Non-drive side. The fingertip shifters can be seen in this picture.

Back view. Cantilever brakes make great stoppers for a loaded bike.

Main triangle showing the clean TIG welds.

Front view of a bike that's perfect for heading off down the road.

---

Trek 1100 58cm frameset. Used, $250.00/as described & pictured

• Trek Alpha Custom aluminum tubing
• Trek Design full CroMoly fork with Spinner dropouts
• Rear Derailleur Hanger stripped – Dropout Saver supplied (see explanation below and picture seven).
• 58cm seat tube & top tube
• 31.8mm seat tube diameter
• 15.0cm head tube
• 42cm chainstay
• 110.0cm wheelbase
• Bottom bracket drop 7.0cm
• Weight 7lbs.
• Serial # WTU 000422391
• TBI-0405  GV0Z0727
• Rack and fender braze-ons
• OEM headset included.

About dropout savers:
Here's the short story on what a dropout saver is and how it works: The Dropout Saver system is an alternative to replacing badly bent or damaged derailleur dropouts. Rather than replacing the damaged dropout completely, simply drill out the damaged threads and install a Dropout Saver and realign the dropout. A deeper explanation is here.

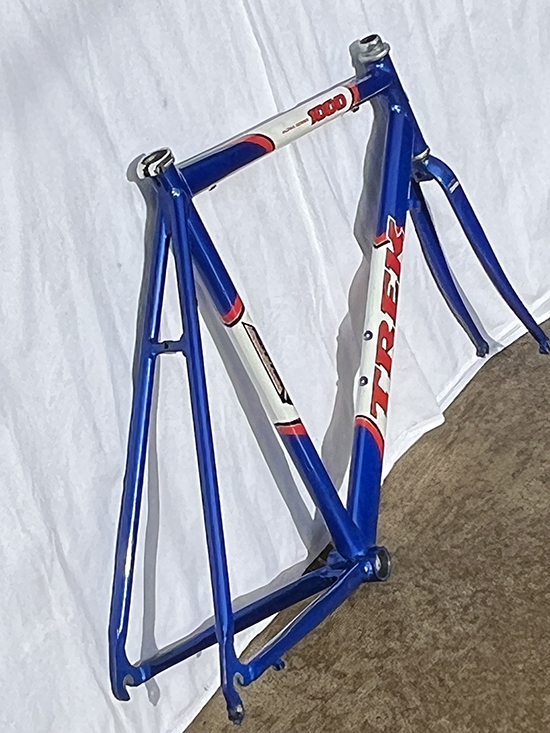

Side view

The other side of the frameset

Front view

From behind

From above

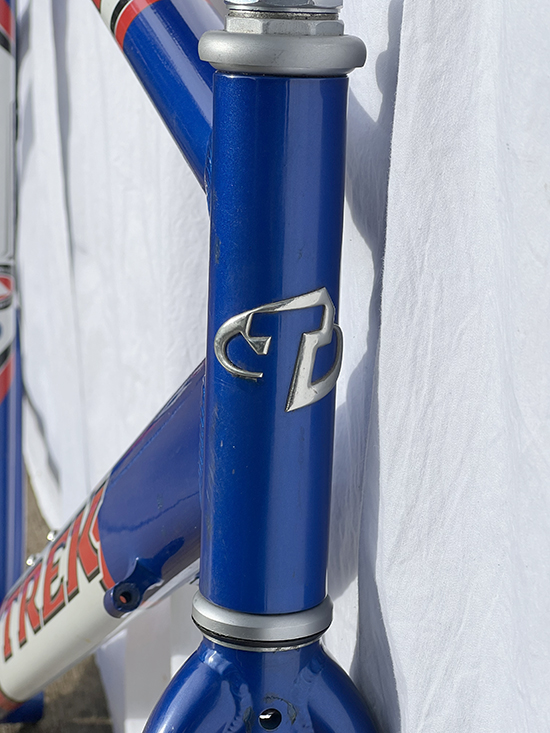

The head tube badge

Important: The stripped dropout and the dropout saver that will come with the frameset.

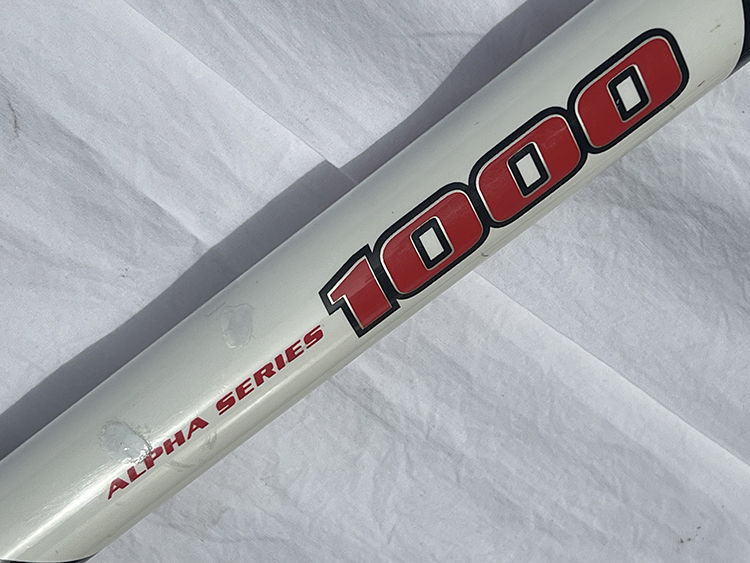

Top tube decal

The seat tube

Seat tube decal

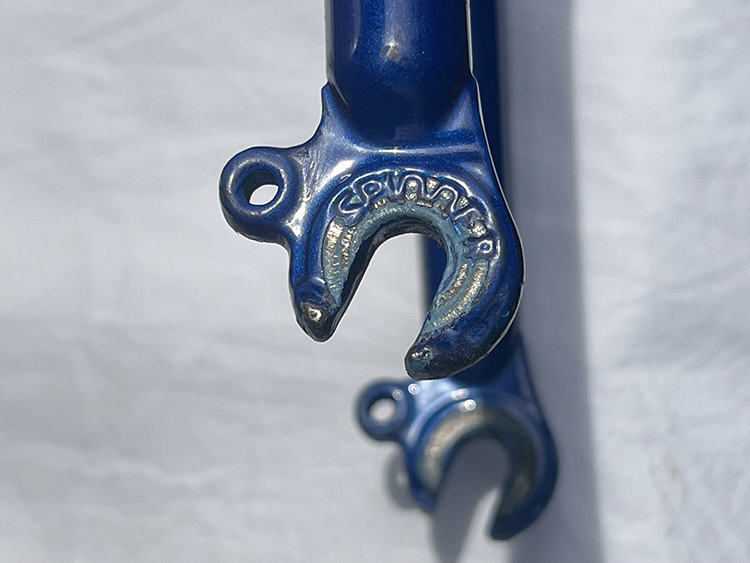

The front fork's spinner dropouts

---

59 cm Trek 531 frameset. Used, $400.00

59cm seat tube x 58cm top tube

• Reynolds 531 tubing, lugged construction
• 185mm head tube
• Serial #106318
• Forged, horizontal dropouts

The Reynolds 531 sticker is at the bottom of the seat tube

---

18" Trek Y-5 Mountain Bike. Used, $700.00

• Manitou suspension fork
• Fox Coil rear shock
• Shimano LX derailleurs, V-Brakes, Servo-Wave brake levers
• Shimano STX-RC Rapidfire Plus shifters.
• Shimano STX-RC 32h rear hub laced to 26” Matrix doublewall, asymmetric rim
• Shimano STC-RC crankset
• Trek OS front hub laced to 26” Matrix doublewall rim
• Folding front & rear tires
• Ibis bar ebds

Side view

From the front

Close-up of the controls

---

Trek 7000 18” Mountain Bike. Used, $450.00/each

• This bicycle has been completely overhauled.
• 29lbs weight with pedals and luggage rack
• Conforms to BS 6102 (British Standard specifications for safety requirements for bicycles)
• Rear hub: new cup & cone, rear non-drive side.
• DX RF shifters cleaned & re-lubed.k

The frameset, Made in USA:

• Easton E90 ProGram Alloy tubing
• Tange Big Fork, 1 1/8” threaded
• Top Tube: 56cm/22”
• Chainstay: 43cm/17”
• Wheelbase: 1.065 meters/42”
• Head Tube: 95mm
• Steerer Tube: 125mm
• Bottom Bracket Drop: 30mm
• Serial #783296
  81 0406
  RS7

The build kit:

• Vetta Gel saddle.
• Kalloy 27.2mm seatpost
• Shimano Deore DX RapidFire shifters
• Shimano Deore LX M550 derailleurs.
• Shimano Deore LX M550 crankset, 175mm arms, 24/36/48, with square taper arms.
• Shimano sealed cartridge bottom bracket.
• Pedals with toeclips and straps.
• DID Super Lannier chain
• Shimano HyperGlide 7-speed cassette, 13-30 teeth.
• Shimano Deore DX/M650 series Cantilever calipers with Eagleclaw pads.
• Shimano Deore LX M550 hubs, 32-hole.
• Matrix Single Track ATB Comp double-wall rims, made in USA.
• Three Dot 14g stainless steel spokes
• Kenda 26 x 1.95 tires, new. Presta valve tubes.
• Tange Aspices Japan 1 1/8” threaded headset
• Matrix stem, True Temper bar 25.4.
• Tomac grips.
• Profile Oscillating adjustment bar ends.
• Blackburn Original luggage rack.
• Vetta Gel saddle.

Side view of the bicycle.

Front view

From behind

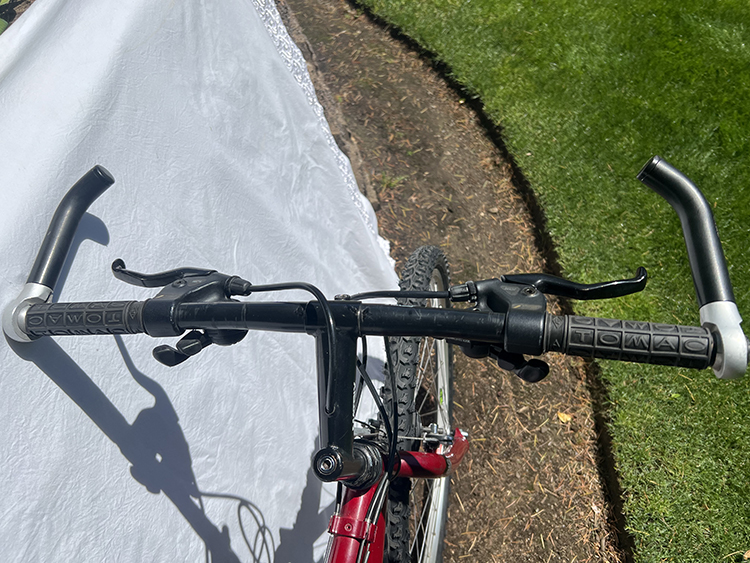

Looking down on the cockpit

Side view with a close-up of one of the Profile bar ends

Side view of the fork.

Close-up of one of the Tomac grips and the DX RapidFire shifters/brake levers

Front close-up

The Shimano Deore LX M550 crankset

Comfort matters, so here's a Vetta Gel saddle.

Made in USA decal on a seat stay

The Shimano Deore LX rear derailleur

The Blackburn rack.

The Jim Blackburn name stamped into the rack.

The front hub

Here's the rear hub.

One of the Matrix rims

The Easton 7000 Series aluminum alloy tubing decal.

Sticker noting that this bike conforms to British Stadards.

The serial number stamped on the bottom bracket shell.

---

Trek 7000 18.5" Mountain Bike. Used, $500.00

• Aluminum frame, Manitou suspension fork
• Bontrager hubs laced to Matrix rims
• Shimano STX-RC Rapidfire Plus 3x8s shifters
• Shimano LX front derailleur, Shimano XT rear derailleur
• Shimano STX-RC Servowave brake levers
• Avid 1.0 V-brakes
• Onyx crankset

Side view

From the front

Close-up of the front end.

---

Trek's most famous rider was Lance Armstrong, who initially won an incredible seven consecutive Tours de France.

On Oct. 22, 2012, Armstrong was formally stripped of his seven Tour de France victories and received a lifetime ban from Olympic sports after the International Cycling Union chose not to appeal doping charges against Armstrong by the United States Anti-Doping Agency.

Here's some Armstrong memorabilia from before his cheating was revealed.

Wheaties, the Breakfast of Champions

The back of the box

Here's a close-up of the text.
